TANRU
TanRu Cell™ is a three-dimensional mesh cell structure formed by reinforced HDPE sheet material through high-strength welding. Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet. It is flexible to fold during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity.
Product Instruction
Geocell was made of HDPE or Polymeric Nano-Composite Alloy(PCA), it is a new type of high-strength geosynthetics, which is popular in domestic and abroad. It is a kind of three-dimensional network structure shaped by high-strength HDPE sheets and Polymeric Nano-Composite Alloy(PCA) she through ultrasonic welding of high strength. To solve the problem of load distribution,foundation stability and surface stability of weak foundation!
Features
1. Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2. Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3. Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4. Retractile, easy to transport.
5. Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
6. Can be used repeatedly.
Application

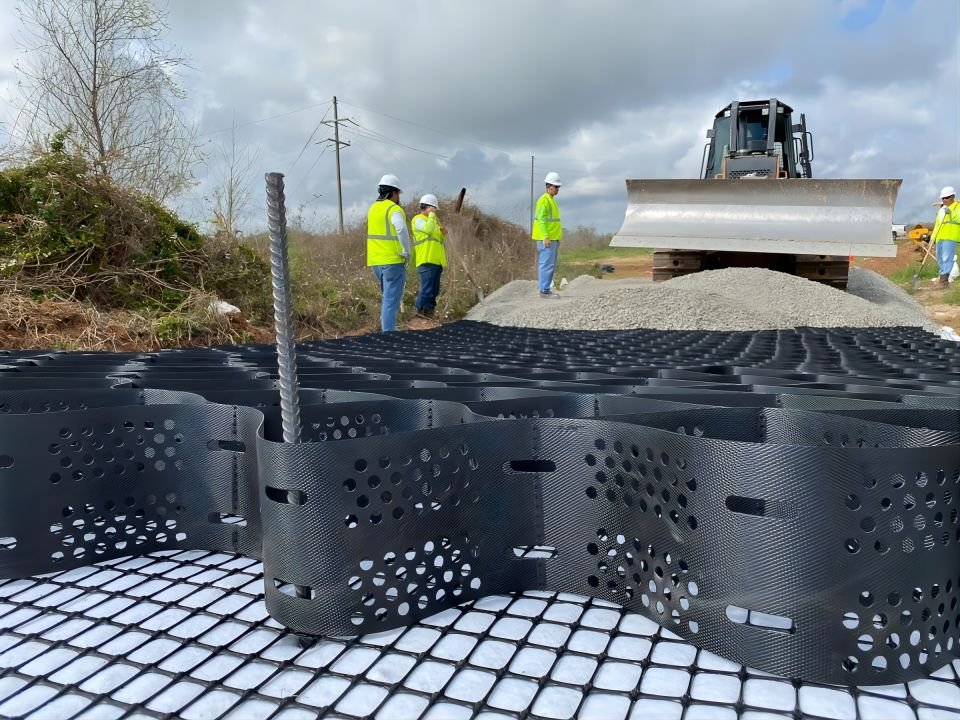

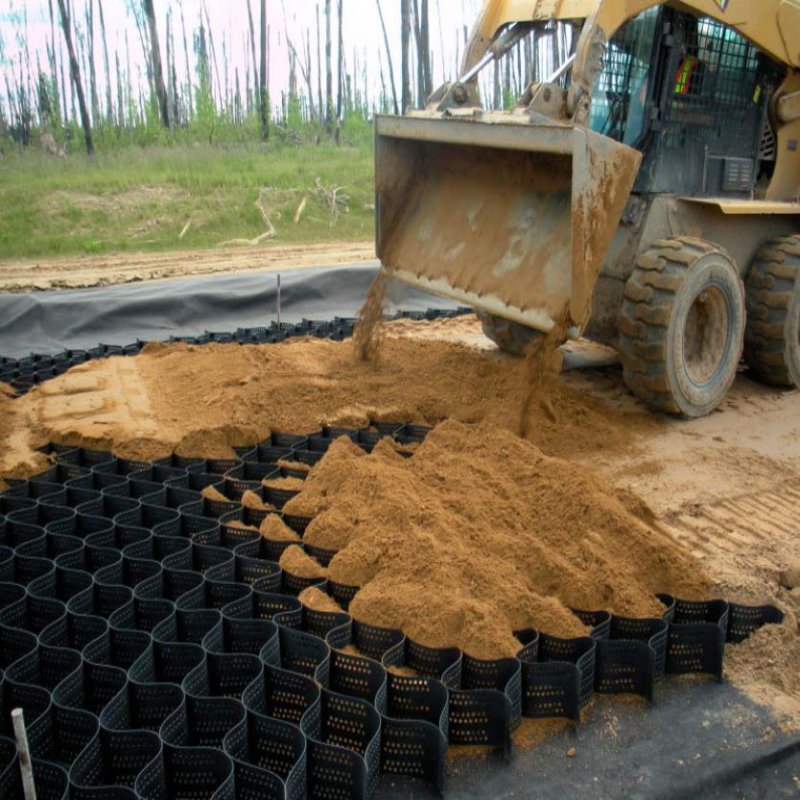

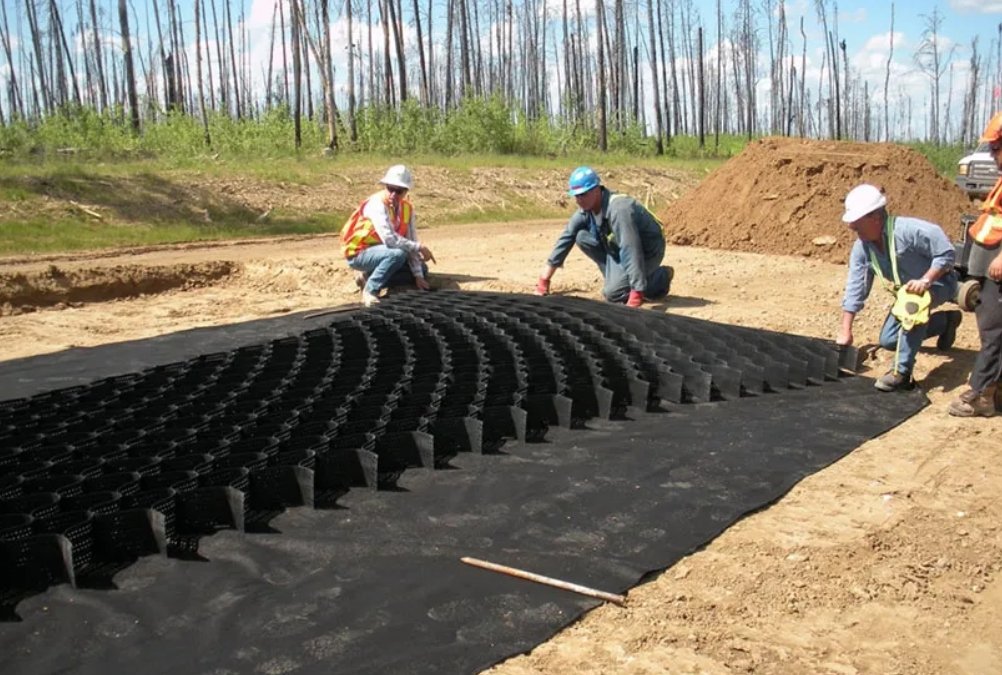

1.Geocell can be used as cushion coat to strengthen loading capacity of weak ground.

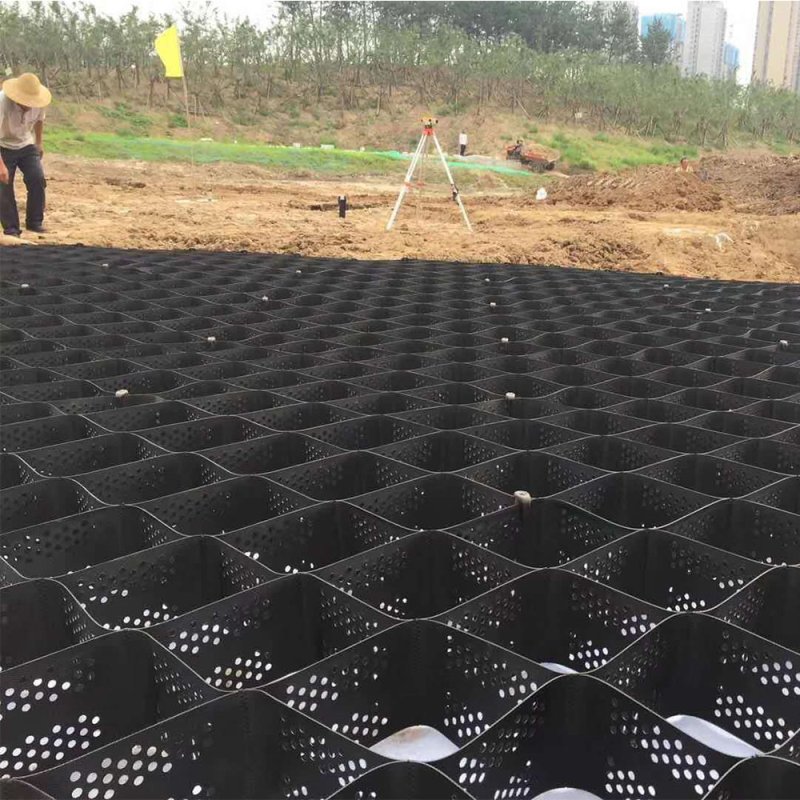

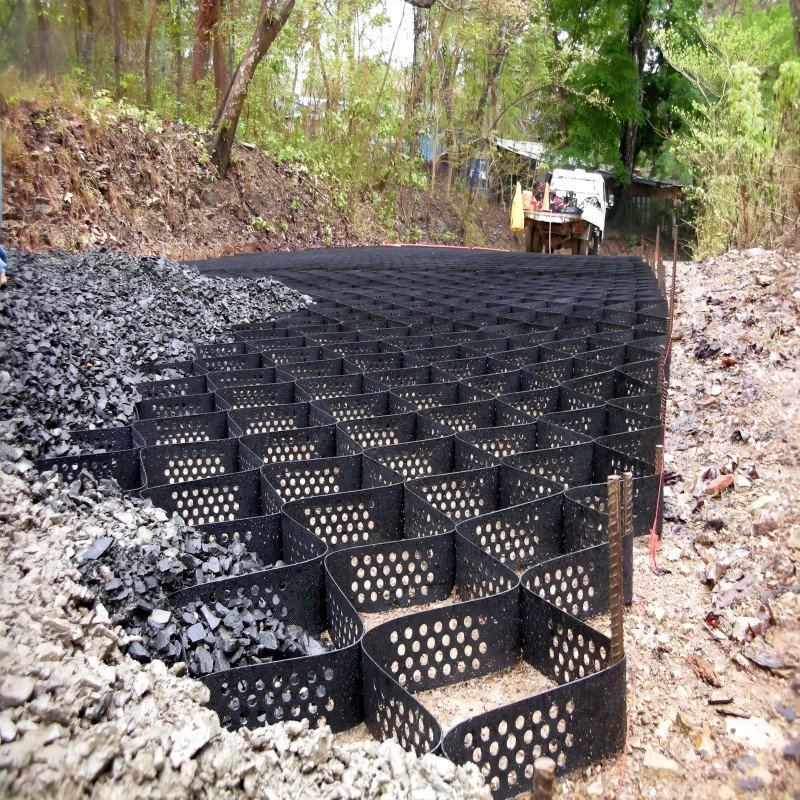

2.Geocell can be paved in slope as slope protection structure.
3.Geocell can be used to build the support block structure.
| Item Model | Height (mm) | Welding distance(mm) | Sheet thickness(mm) | Seam peel strength≥(N) | Expanded Cell Size(mm) | Expanded panel size (m) | |
| smooth | textured | ||||||
| GC-100-330 | 100 | 330 | 1.1 | 1.5 | 1420 | 244X203 | 2.44X6.15 |
| GC-150-330 | 150 | 2130 | 244X203 | 2.44X6.15 | |||
| GC-200-330 | 200 | 2840 | 244X203 | 2.44X6.15 | |||
| GC-100-356 | 100 | 356 | 1.1 | 1.5 | 1420 | 259X224 | 2.56X6.52 |
| GC-150-356 | 150 | 2130 | 259X224 | 2.56X6.52 | |||
| GC-200-356 | 200 | 2840 | 259X224 | 2.56X6.52 | |||
| GC-100-400 | 100 | 400 | 1.1 | 1.5 | 1420 | 295X250 | 4X5 |
| GC-150-400 | 150 | 2130 | 295X250 | 4X5 | |||
| GC-200-400 | 200 | 2840 | 295X250 | 4X5 | |||
| GC-100-445 | 100 | 445 | 1.1 | 1.5 | 1420 | 320X287 | 2.56X8.35 |
| GC-150-445 | 150 | 2130 | 320X287 | 2.56X8.35 | |||
| GC-200-445 | 200 | 2840 | 320X287 | 2.56X8.35 | |||
| GC-100-660 | 100 | 660 | 1.1 | 1.5 | 1420 | 488X406 | 2.44X12.29 |
| GC-150-660 | 150 | 2130 | 488X406 | 2.44X12.29 | |||
| GC-200-660 | 200 | 2840 | 488X406 | 2.44X12.29 | |||
| GC-100-712 | 100 | 712 | 1.1 | 1.5 | 1420 | 508X475 | 2.56X13.72 |
| GC-150-712 | 150 | 2130 | 508X475 | 2.56X13.72 | |||
| GC-200-712 | 200 | 2840 | 508X475 | 2.56X13.72 | |||
